Professors |

R.Livesey / B.Overly

Location |

Ann Arbor, Michigan

Duration |

09/14 - 12/14

Team |

D. Livanec, L.Snyder


Role

My role on this project revolved around having an efficient workflow between members.  Because  of the efficiency of Revit as a software I was able to take on a dual role of Designer and Renderer.  I also was able to find time to generate diagrams while rendering.  I was really happy with how easy it was to delegate work using exports for drafting and linked models for designing.

Program

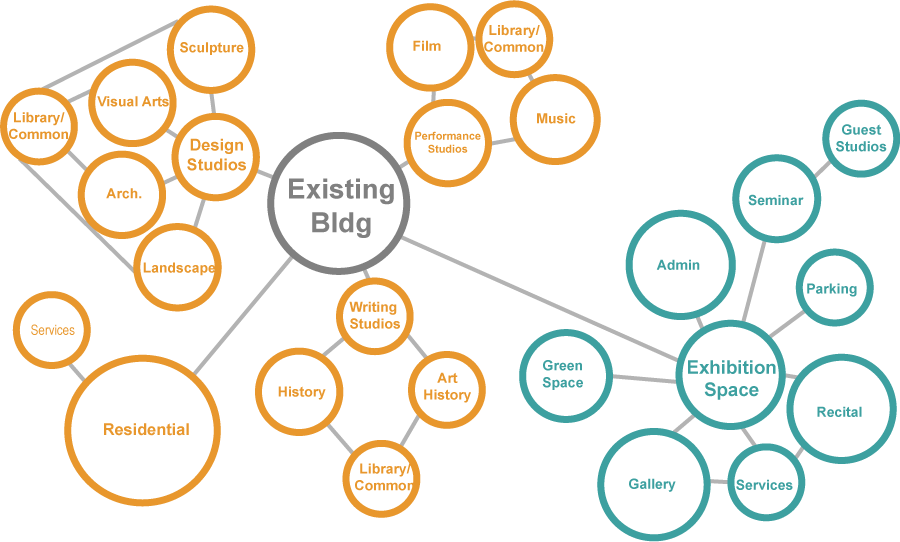

The project was a renovation of an existing tower which had a rather parasitic relationship with its neighborhood.  In an effort to improve this, we moved our design school into the upper stories of the tower. Collaborative floors became double height, additional structure was added and atriums punched through the facade to improve views.

Site Selection

As a team, we chose one of five potential cities.  Our team focused on Ann Arbor, MI in an area near University of Michigan.

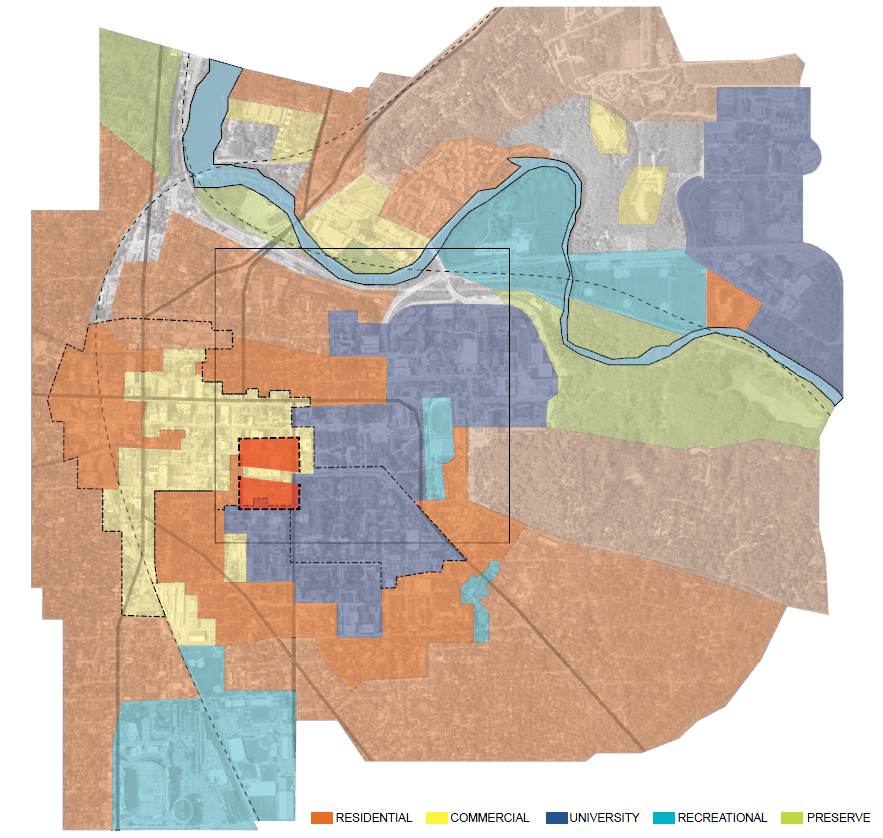

FAR Study for Downtown Core District D1

Site District - D1 (downtown core district)
- Greatest concentration of development
- Intended for intensive pedestrian use.
- Zoned for high density residential, office, and commercial.



We found an opportunity for an adaptive reuse of an existing building.  The curtain wall was failing and it was not in scale with the community.  We saw this as an opportunity to improve views for art students and use objects to break down the monotonous facade.

The first obstacle we noticed were the sheer walls. Due to this structural system, the bays were forced to maintain a specific distance.

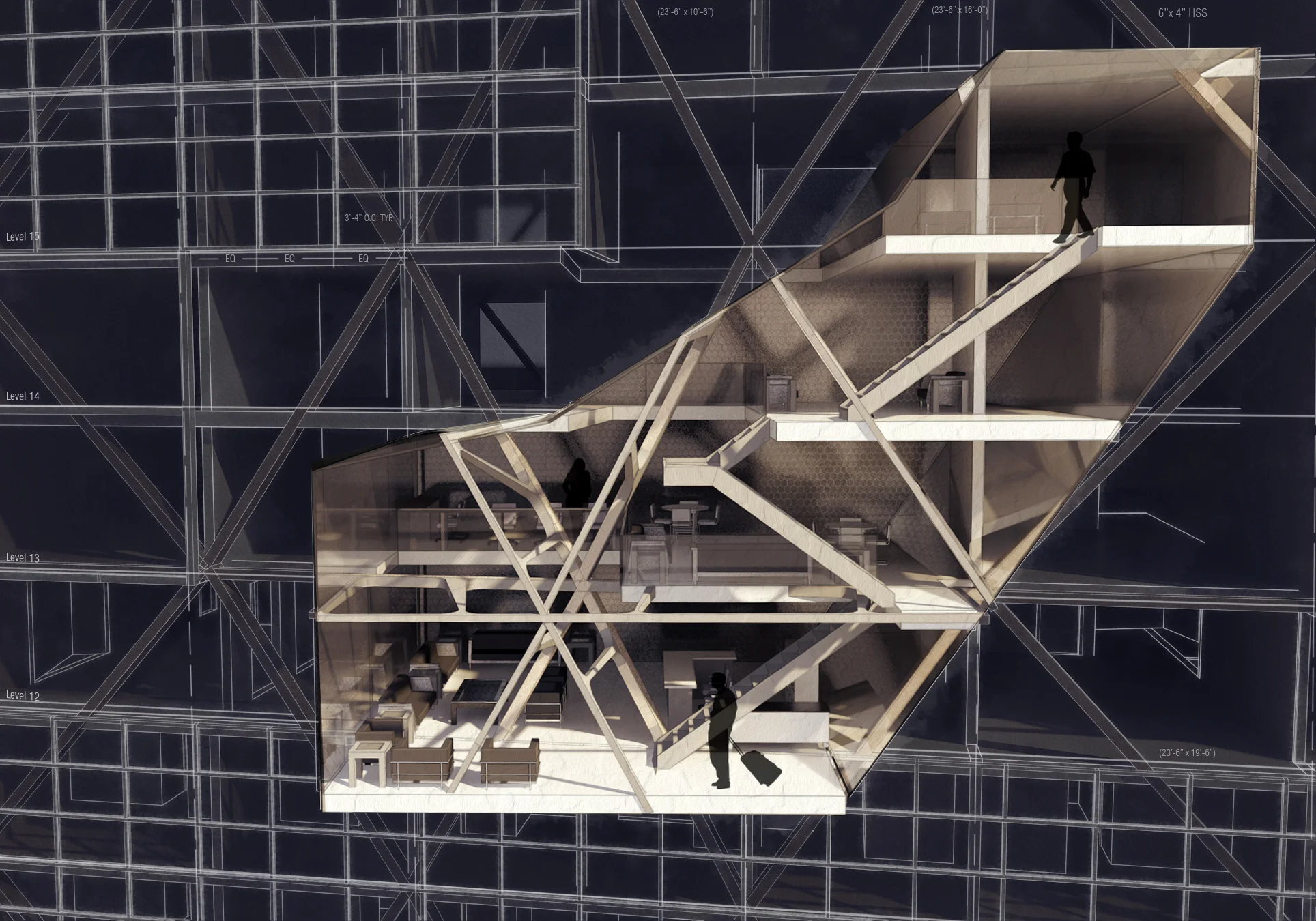

In order to achieve expansive breakout spaces, we needed a secondary system to distribute the load. We chose a diagrid system which laced between the bays, using existing characteristics to inform its new design.

Field
Structure
Void
Objects
Composition

So we sorted out some strategies,  starting with our blank slate, populating it with a design informed by the demising walls.

There was a strong desire to provide natural light for interior gathering spaces.  Finally, we wanted objects to provide a sense of place for the major programmatic elements within the campus.

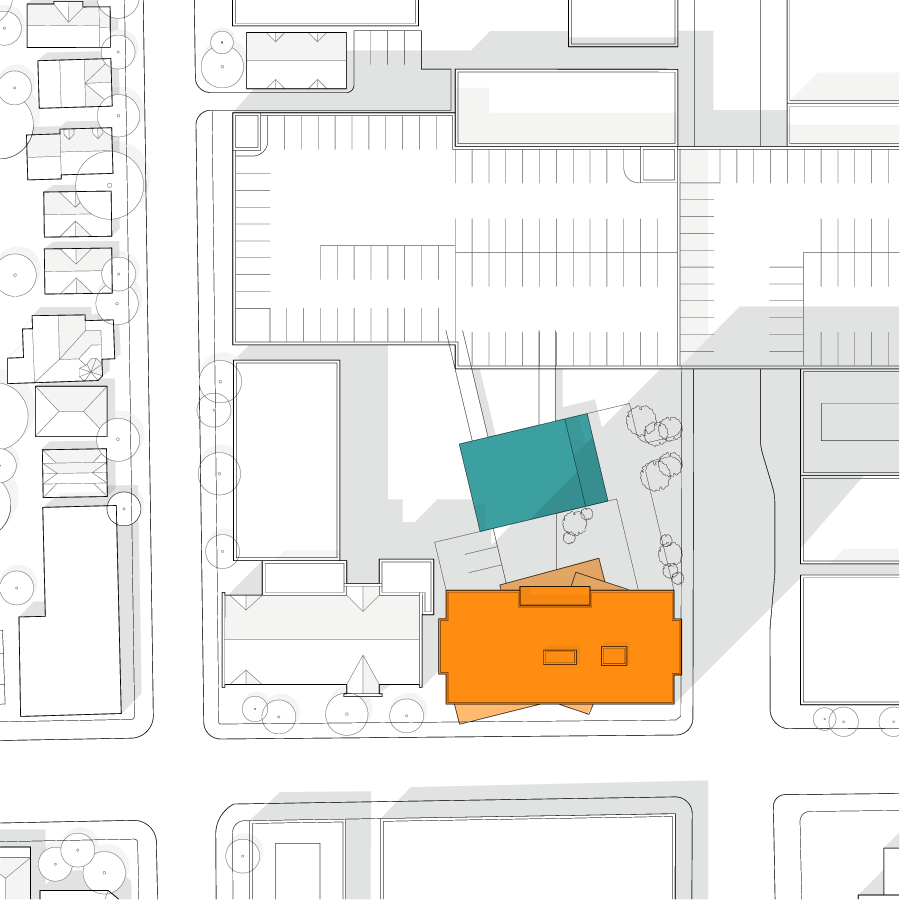

We chose to place the gallery outside of the tower to separate public and private functions.


FullBuildingIso WithGlazing.PNG


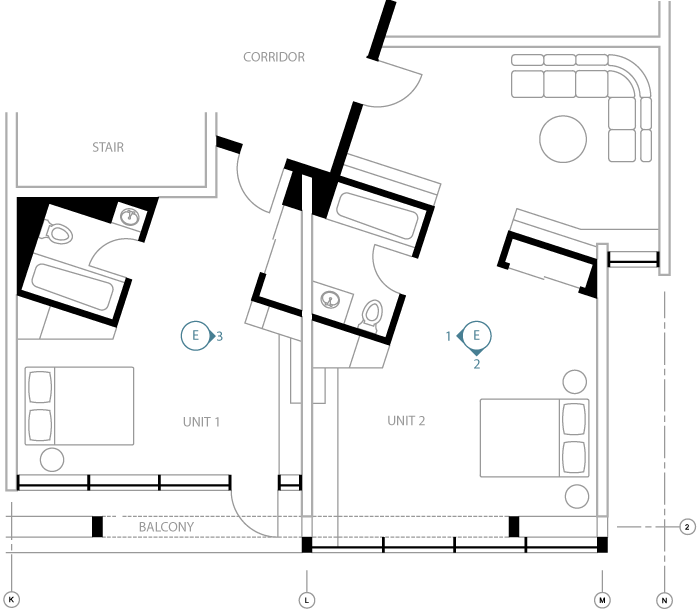

The upper floors started to take cues from the new objects interacting with the tower.
